Topic: another stl help

Im trying to create a light switch wall plate with a light timer cover and i've put the file through cloud and it fills in the opposite holes that i want here is the link to the file http://cloud.netfabb.com/index.php?key= … ab73182847

Post's attachments

wpc.stl 65.75 kb, 3 downloads since 2013-05-15

You don't have the permssions to download the attachments of this post.

2 Reply by cckens (edited by cckens 2013-05-15 22:53:48)

  • cckens
  • Member
  • Offline
  • Registered: 2012-09-13
  • Posts: 591

Re: another stl help

Holy Non-Manifold Edges!

Syko, what did you model this with?  The original is showing a lot of non-manifold edges.  When I run through MeshLab and look at the wireframe mesh there are facets all over the place where there shouldn't be.  I'll get a pic posted of what I see when I can download it.

EDIT:

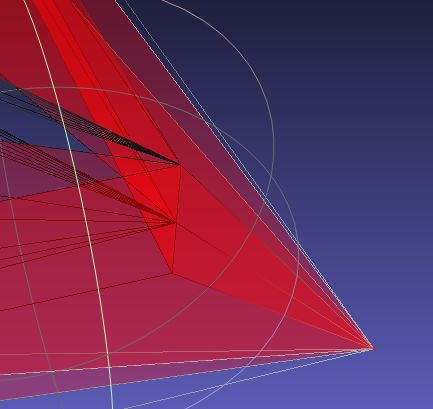

http://www.kenzden.com/download/SykoDJ05152013.jpg

The darker red in the center is a facet that is created between the 3 vertices of the corner and the inside edge.  This shouldn't be there...

3 Reply by SykoDJ

  • SykoDJ
  • Member
  • Offline
  • From: Newtown CT
  • Registered: 2013-02-25
  • Posts: 121

Re: another stl help

i modeled it in sketchup havent had this issue before

4 Reply by cckens

  • cckens
  • Member
  • Offline
  • Registered: 2012-09-13
  • Posts: 591

Re: another stl help

Weird,  sketchup isn't usually this twitchy...

5 Reply by SykoDJ

  • SykoDJ
  • Member
  • Offline
  • From: Newtown CT
  • Registered: 2013-02-25
  • Posts: 121

Re: another stl help

i know thats why im stuck i cant figure this out

6 Reply by SykoDJ

  • SykoDJ
  • Member
  • Offline
  • From: Newtown CT
  • Registered: 2013-02-25
  • Posts: 121

Re: another stl help

what would be the best way to fix that

7 Reply by fredhag

  • fredhag
  • Member
  • Offline
  • From: Richmond, VA
  • Registered: 2012-08-31
  • Posts: 38

Re: another stl help

I imported the stl into SU and could not get FixSolid plugin to fix the problems.  Instead of manually fixing it, I re-created the wallplate next to the other one, using the dimensions as best I could.  I exported that wallplate as an stl, and seems to look good.  If you're new to SU, I can summarize how I made it, but I'm not a master but have some fu.

Post's attachments

wallplate.skp 76.88 kb, file has never been downloaded.

wallplate.stl 35.04 kb, 4 downloads since 2013-05-15

You don't have the permssions to download the attachments of this post.
Cheers,
Fred
Fredrick C. Hagemeister
http://blog.richmond.edu/ti3d

fredhag's Website

8 Reply by SykoDJ

  • SykoDJ
  • Member
  • Offline
  • From: Newtown CT
  • Registered: 2013-02-25
  • Posts: 121

Re: another stl help

not completely new to sketchup just new to the advanced stuff i've mainly used sketchup for subwoofer box design thanks for the help

9 Reply by fredhag (edited by fredhag 2013-05-16 00:02:25)

  • fredhag
  • Member
  • Offline
  • From: Richmond, VA
  • Registered: 2012-08-31
  • Posts: 38

Re: another stl help

It took some time when I was going from using SU for visual sketching to making watertight 3D printable things.  I realized I can simply hit undo and use those steps so here is the evolution if you want it.

Post's attachments

wallplate_steps.skp 115.64 kb, 2 downloads since 2013-05-16

You don't have the permssions to download the attachments of this post.
Cheers,
Fred
Fredrick C. Hagemeister
http://blog.richmond.edu/ti3d

fredhag's Website

10 Reply by SykoDJ

  • SykoDJ
  • Member
  • Offline
  • From: Newtown CT
  • Registered: 2013-02-25
  • Posts: 121

Re: another stl help

thanks i appreciate it
