Topic: holy spirit -dove

juts finished last challenge i came across.. to repalce a missing dove from a statue representing the holy spirit...
*first i model a dove in zbrush using zspheres. with the plugin decimation master reduce the polygon count to somenthing that could be easily handle...
*export to cinema 4d (which STL export features are really good)and "boolean" the piece in the way was going to be printed..and export the STL file
*load the STL files in the 3d printer software and set up a some what slow speed....

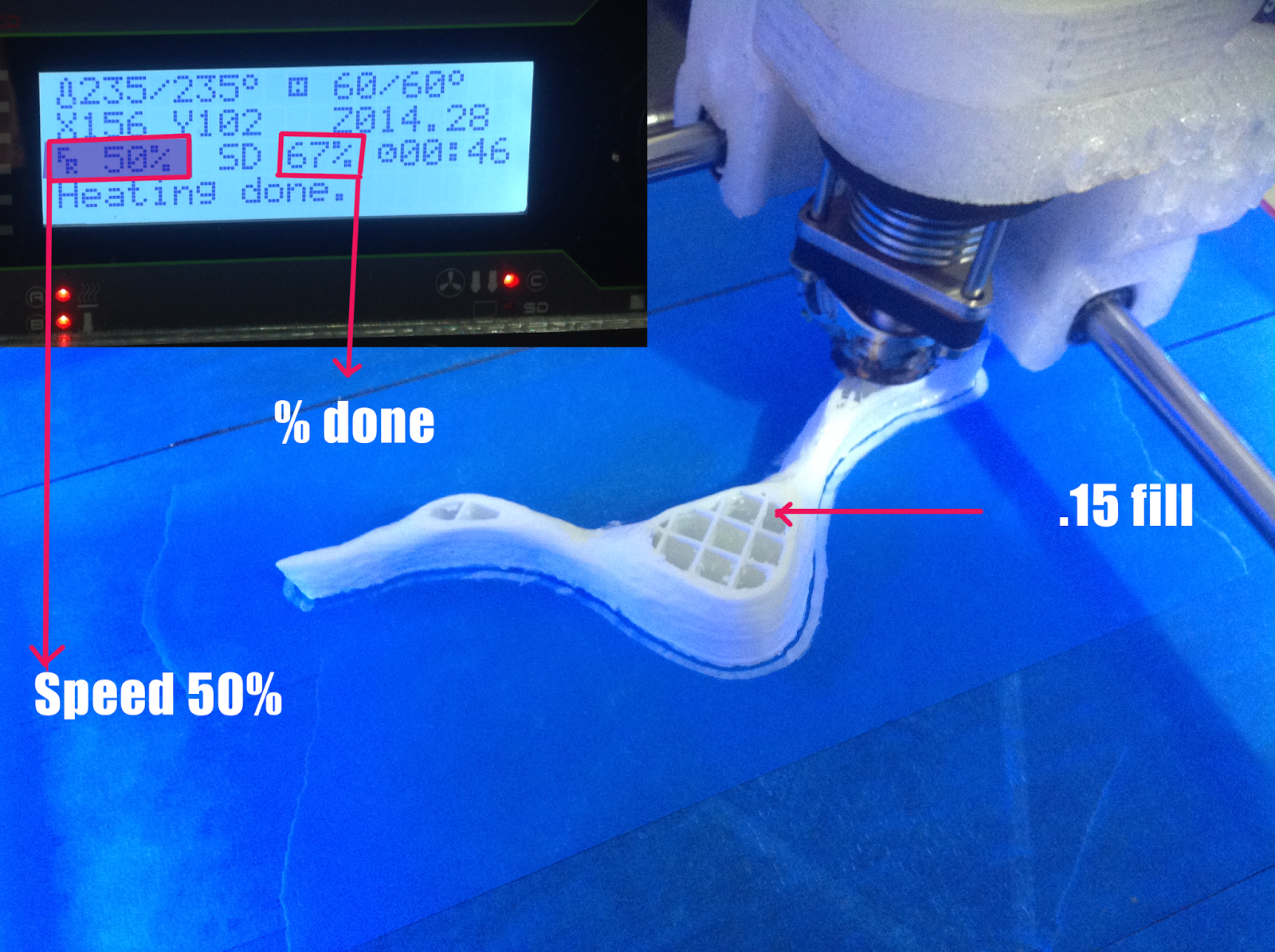

* then i just sat and watch the dove being printed... and as the extruder came to the narrow parts, i gradually reduce the speed to let the PLA become solid and avoid what i refer to  the "jelly effect"...
*after that ,just some glue and sand on the pieces and tara!(?)
i learned that the fan most be on in order to cool the PLA better... and standing next to the printer blowing at the extruder makes u look dumb.... also if glue and sand properly ,,, u cant hardly see the joint(?) line where the pieces come togher---

thanks for any tips and advices...
cheers!

http://3.bp.blogspot.com/-IbPNbFHC9e0/U_UTr7xNXXI/AAAAAAAAAQM/oW50tAgTPXQ/s1600/1.png
http://1.bp.blogspot.com/-kk2hkn6y9A8/U_UOm2WebSI/AAAAAAAAAOg/UdpVFU1MIww/s1600/MESH22.png
http://1.bp.blogspot.com/-iA2e9pJKCco/U_UOnJgeLhI/AAAAAAAAAOk/Ua-cof1-c-c/s1600/MESH.png
http://3.bp.blogspot.com/-PqJJt0g42DM/U_UO1LkWe3I/AAAAAAAAAPo/youOHGt0Q-k/s1600/ready%2Bto%2Bexport%2BSTL.JPG
http://3.bp.blogspot.com/-lmtF6nNALKc/U_UO08CWozI/AAAAAAAAAPk/YYaYlR5yNWc/s1600/matter%2Bcontrol%2Bset%2Bup.JPG
http://3.bp.blogspot.com/-BcvXSK47qnw/U_UOzTCZCiI/AAAAAAAAAPY/FIUud9z7DuA/s1600/matter%2Bcontrol%2B2.JPG
http://1.bp.blogspot.com/-bNzZLMHFa40/U_UOtshmOPI/AAAAAAAAAPI/axM-1s2gLkg/s1600/espiritu%2Bsanto.png
http://1.bp.blogspot.com/-joX79I9VKg8/U_UOy5B13PI/AAAAAAAAAPg/tjUeJgv48Po/s1600/espritu%2Bsanto%2B2.png
http://1.bp.blogspot.com/-CwNkOAwgRzM/U_UO06sPWlI/AAAAAAAAAP4/L2wPzPXIzm8/s1600/espritu%2Bsanto%2B3.png
http://2.bp.blogspot.com/-GcY-5OHH_oU/U_UOvsbMHKI/AAAAAAAAAPM/O0tApotybqM/s1600/espiritu%2Bsanto4.png
http://1.bp.blogspot.com/-Yew2McSdnnU/U_UOq7kg1sI/AAAAAAAAAPA/yKVARYX4FtU/s1600/espiritu%2Bsanto%2B5.png
http://4.bp.blogspot.com/-C1GrG8KPevU/U_UOoRM7FoI/AAAAAAAAAO0/GFcwf1nZRjg/s1600/espiritu%2Bsanto%2B5.JPG

2

Re: holy spirit -dove

version 3 is just like one used on a picture frame with music box and it has a magnet that holds magnet under birds belly as dove flys around picture with verse on it. would be nice to have file on thingaverse in case somebody needs replacement for Dove. My wife has one of these frames as gift from her late Mom.

there is a similar hallmark music box with mirror and snow around it as Snoopy and Woodstock skate in circle

Solidoodle 2 with Deluxe kit cover & glass bed with heater. and 2nd board SD2 used not 3rd and alum platform not installed yet still wood. also need cooling fan installed to board. use Repetier Host couple vers. Slic3r also have all free ware STL programs

3

Re: holy spirit -dove

very nice, thanks for sharing

SD2 - Glass Bed, Fans on PCB and Y motor, Custom enclosure
Slicer - Simplify3D

4

Re: holy spirit -dove

wire10ga wrote:

very nice, thanks for sharing


thanks!

5

Re: holy spirit -dove

Can you share the STL? Love it!
